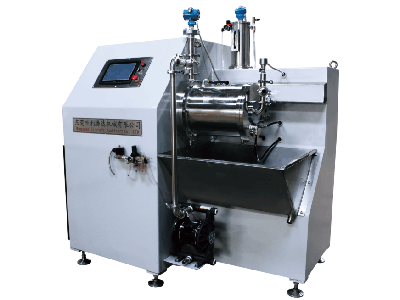

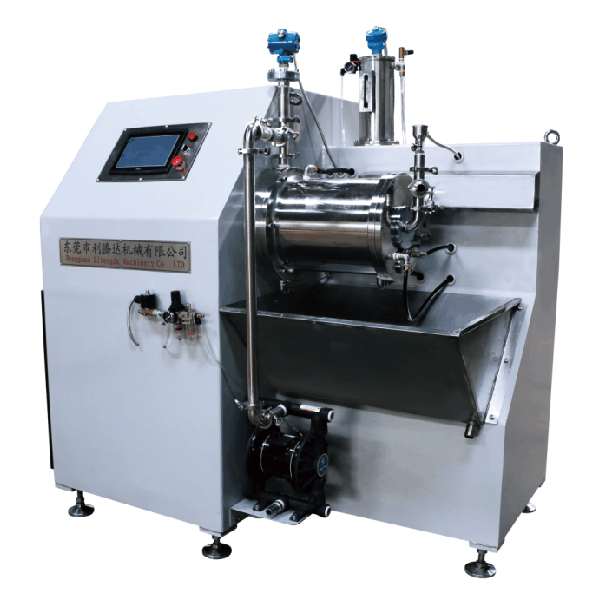

LTD1022BW棒销涡轮纳米砂磨机

1、带销钉的涡轮结构转子，具有强剪切力、动力分布均匀、研磨腔内物料和介质流动性好等特点，能实现对物料的高效研磨分散，研磨细度1μm—50nm；

2、采用离心式分离器，具有过流面积大、分离效果好、适用寿命长等优点；

3、使用耐磨损、耐腐蚀的集装式双端面机械密封，并配置了机封润滑冷却监测和压力平衡机构，机封装拆更容易，维修更方便；

4、变频调速，可根据物料的需求选择相应研磨转速，达到理想研磨效果；

5、研磨腔体材质可以选择碳化钨、聚氨酯、氧化锆、氧化硅、碳化硅等，适合不同客户需求。

◆Turbine rotor with pins structure,with strong shear force, power distribution, good liquidity of media and materials in grinding chamber and other characters,to achieve efficient material dispersion, grinding fineness 1μm ~ 50 nm;

◆Adopt centrifugal separator, with the advantages of large  flow area, good separation and long using time etc ;

◆Use the wear and corrosion resistant cartridge double mechanical seal, and configure the mechanism of mechanical seal lubrication and cooling monitoring and pressure balance, easy assembly and disassembly, easy maintenance;

◆Frequency control, users can select the best grinding speed according to the needs of the material, to  achieve the best grinding results;

◆The grinding chamber material can select tungsten carbide, polyurethane, Zirconia, silica, silicon carbide, etc., to meet the different customers’needs .

纳米颜料、陶瓷墨水、磁性材料、氧化铝材料、电子浆料、硅酸锆材料、热转印喷墨、磷酸铁锂、医药、化妆品、非金属矿粉体、其它新型纳米材料。

nano pigment, ceramics ink, magnetic materials, aluminum materials, electronic pulp, zirconium silicate materials,thermal transfer inkjet inks, lithium iron phosphate, pharmaceuticals, cosmetics, non-metallic mineral powder and other new nano materials.

技术参数

TECHNICAL PARAMETER
